Feature loaded, top label applicator

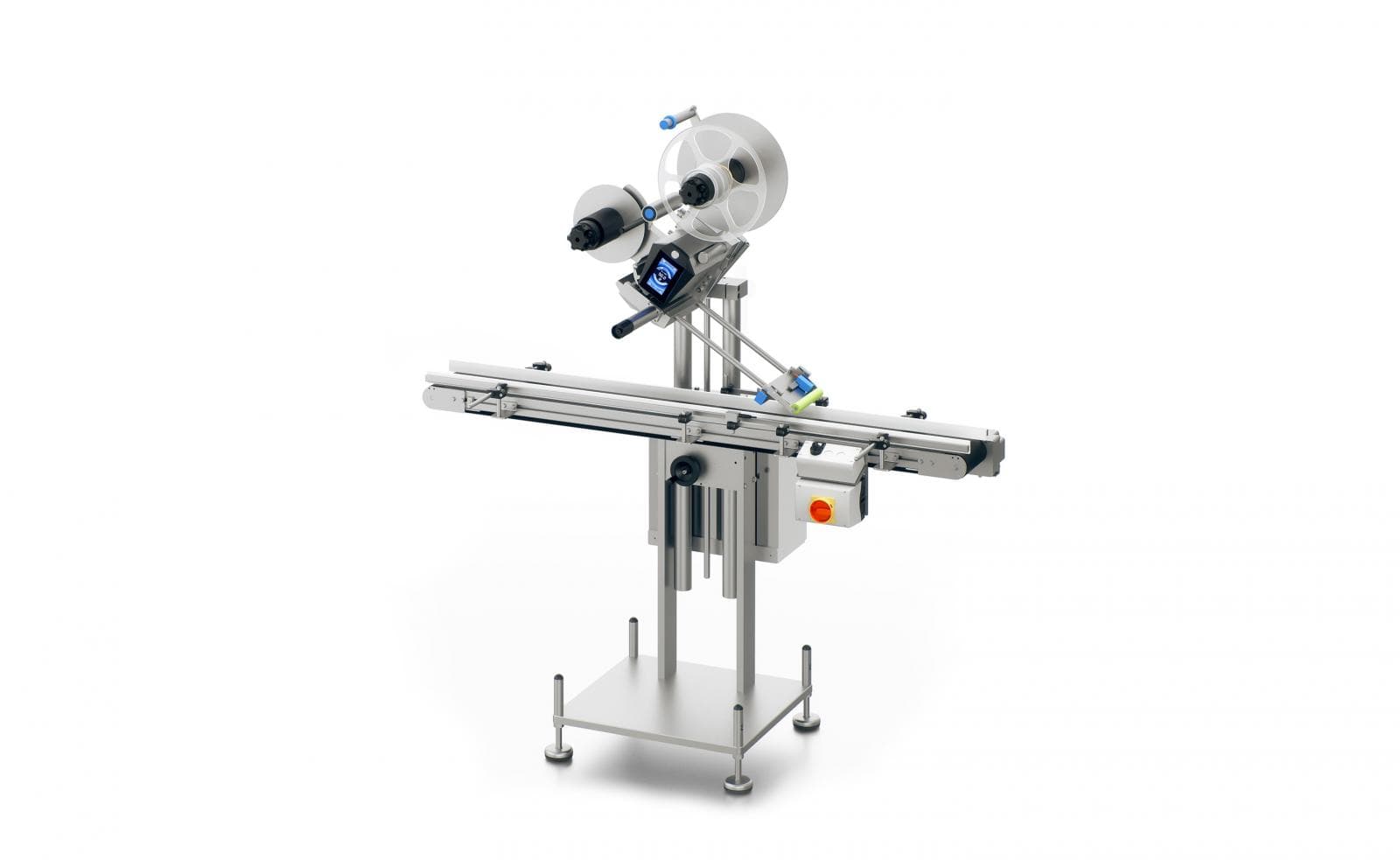

The H452 top labeling head guarantees optimum productivity and flexibility. The machine can be supplied either with a fixed dispensing beak and a sprung-loaded application roller or with a pivot beak. The pivot beak allows for the precise linear labelling of objects with large dimensional tolerances, irregularities, or recesses (such as margarine packs, etc.).
System features and requirements
- Products Length Any
- Width 260 mm (10.2”) with standard belt
- Max. height 280 mm (11”)
- Labels Max. reel Ø 300 mm (12”) (standard)
- Width 120 mm (4.7”) (max. standard)
- Labelling speed Conveyor belt speed [m/min.] Products
- ––––––––––– x 1000 = –––––––––––
- Product length [mm] + gap [mm] min.
- Power supply 230 V / 50 Hz
- 115 V / 60 Hz
- Power consumption Approx. 650 VA
